Seaflo Diaphragm Voltage Pump 12V
Seaflo Diaphragm Voltage Pump 12V
Diaphragm Voltage Pump:

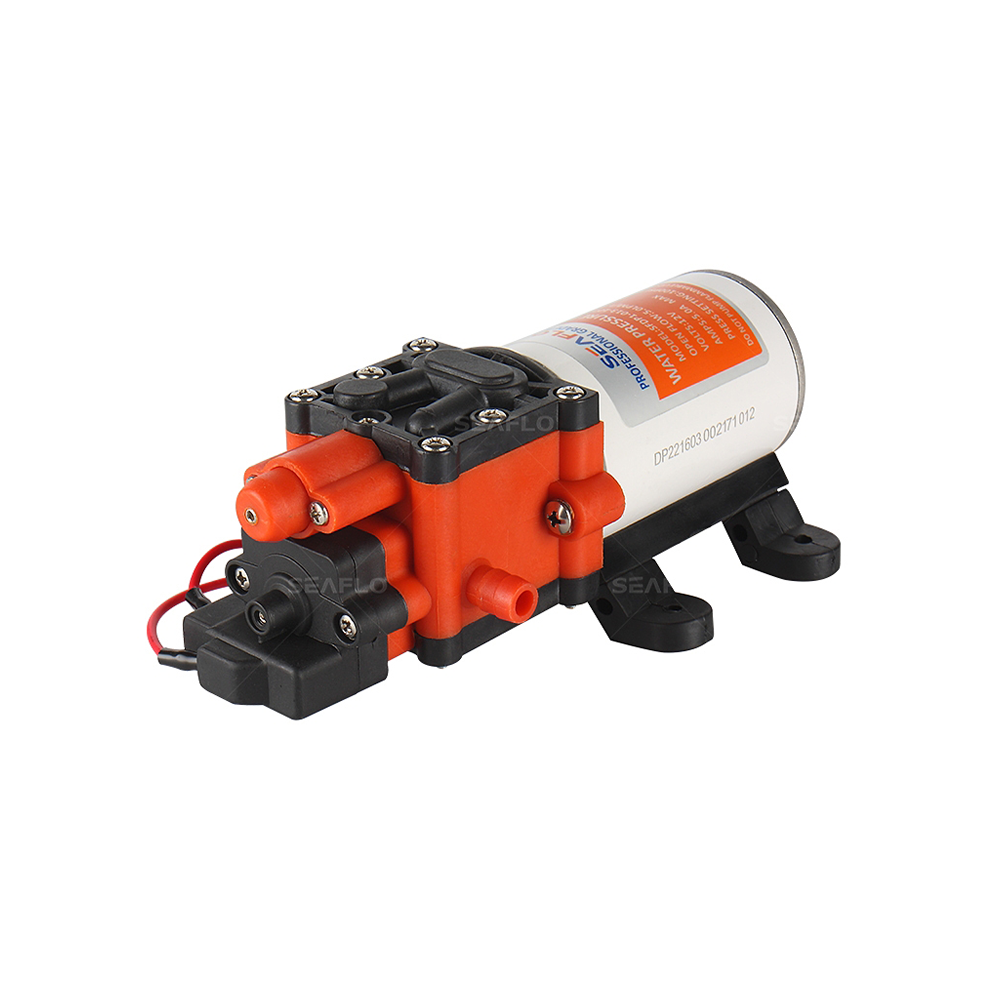

AI OverviewThe SEAFLO 22-Series Water Pump SFDP1-013-100-22 is a 12V DC on-demand diaphragm water pressure pump designed for marine, RV, caravan, agricultural, and off-grid applications.
Power your fluid transfer needs with this high-performance Diaphragm Voltage Pump, designed for reliable and efficient operation across a wide range of applications. Whether you're using it for automotive, agricultural, or marine purposes, this pump delivers consistent flow and pressure with minimal maintenance.
✅ High-efficiency diaphragm pump with compact, lightweight design
✅ Suitable for water, diesel, and other compatible fluids
✅ Operates on standard DC voltage (specify voltage if needed, e.g. 12V/24V)
✅ Self-priming and capable of dry run operation
✅ Built-in pressure switch for automatic start/stop control
✅ Corrosion-resistant materials for long-lasting durability
- Voltage: 12V DC
- Open Flow Rate: 1.3 GPM (5.0–5.3 LPM)
- Shut-off Pressure: 100 PSI (6.9 BAR / adjustable)
- Current Draw: Max 2.5A to 6.0A (typically ~5.0A)
- Suction Lift: 6 ft (1.8 m) self-priming
- Max Water Temperature: 140°F (60°C)
- Ports: 3/8" (10 mm) hose barb
- Materials: EPDM valves and Santoprene diaphragm
- Dimensions: Approx. 187 mm x 98 mm x 72 mm (8.15" x 4.13" x 2.91")
A dependable and versatile pumping solution perfect for mobile, industrial, or recreational use.
Product code: OUT058
